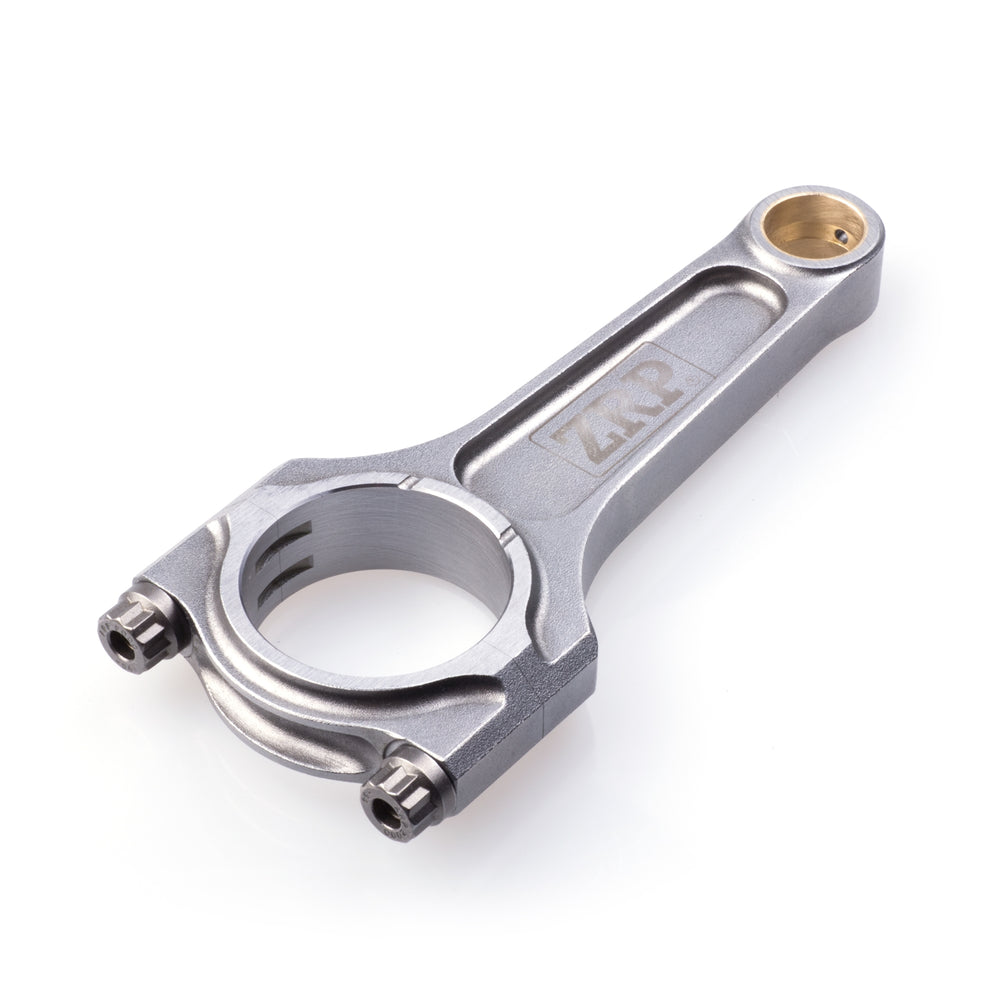

ZRP I-SCHAFT STAHL-PLEUEL OPEL 1.6LTR Z16LET

ZRP I-Schaft Stahl Pleuel mit ARP 2000 SchraubenOpel Corsa 1.6Ltr Z16LET , Z16LER, A16LET , Z16LEH , B16LER, B16LES , A16LES, Z16LES

Technische Daten:

Länge von Mitte zu Mitte
129.75 mm

Durchmesser Hubzapfen
46.0 mm

Durchmesser Pleuelauge
19 mm

ARP Schrauben
Gewicht
3/8"
419 gr

Typ

I-Beam

Set : 4

The I-Beam Connecting rods for Opel 1.6L Turbo Z16 are manufactured
from 4340 high tensile steel, they are designed for high performance,
extreme durability and extra rigidity. The “straight cut” pin end
increases durability, so they can only be used in conjunction with
aftermarket pistons. The bushings are made from AMPCO 18 material, for
excellent resistance to wear and fatigue and have radial groove acting
as an oil reservoir. They are shot peened to relieve stress from the
material and multi-stage heat treated to increase rigidity. The tight
tolerances in the production process, ensure a perfect fitment while
optimizing the oil clearances. Bend and twist is tightly controlled.Each
rod includes ARP 2000 cap fasteners that are rated at 220,000psi,
optional ARP L19 material 260.00psi available as an upgrade and the
whole kit is supplied with ARP moly and full fitting instructions.

Additional machining processes

“Straight Cut” Pin End – Suitable for aftermarket pistons
Dowel sleeves for perfect fit and accurate re-assembling
Lipped Cap Relief for improved big-end integrity at extreme application
Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

I-Beam Shape for extra rigidity.
Two-Piece forging for great strength
Shot Peening for improved fatigue life
Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
Double ribbed caps for added support
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
CNC machining for superior tolerances, precise as much as 0.0002″
Center to center is maintained under .001″ tolerance
Finite Element Analysis (FEA) Computer generated stress analysis of con rods
Optimal balancing for weight matched sets of ± 1gram
