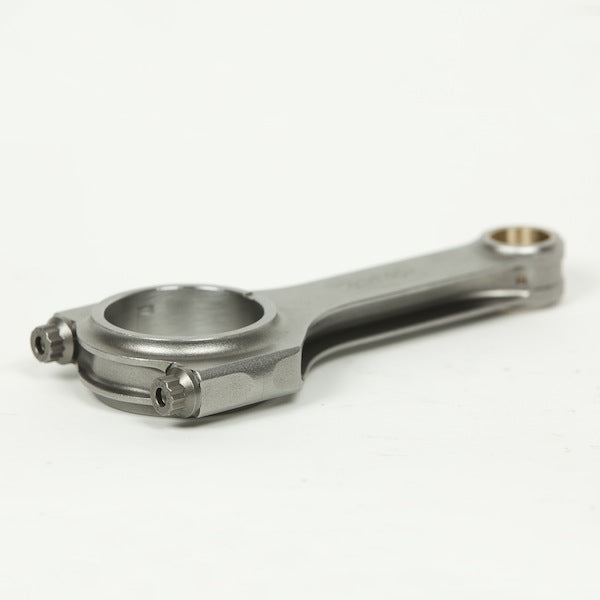

ZRP I-SCHAFT STAHL-PLEUEL FÜR AUDI / VW 2,0 TSI EA888 (AB BJ 2011) 144.00MM X 23.00MM

ZRP Geschmiedete Stahl-Pleuel mit

I-Schaft und ARP-Schrauben

Audi / VW 2,0L TSI EA888 (ab Bj 2011)

Shape

I-Beam

Length

144.00mm

Pin Diam.

23.00mm

Housing Bore

50.60mm

B.E Width

21,85mm

Weight Gr.

508

Set of

4

Bolt Size

3/8"

Fastener Grade

ARP2000

Con-Rod Series

Standard

Bolts Upgrade

Optional ARP L19 fasteners available as an upgrade

Foot Note

Non-Tapered Pin End / Rifle Drilled

The H-Beam Connecting rods for Audi / VW 2.0L TFSI EA888 Gen.2 (Chain Driven) are manufactured from 4340 high tensile steel, they are designed for high performance, extreme durability and extra rigidity. They are “Rifle Drilled” as OEM to improve oiling on the pin end. These feature “straight cut” pin end for increased durability, so they can only be used in conjunction with aftermarket pistons. The bushings made from AMPCO 18 material for excellent resistance to wear and fatigue and have radial groove for oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. The tight tolerances in the production process, ensure a perfect fitment while optimizing the oil clearances. Bend and twist is tightly controlled.

Each rod includes ARP 2000 cap fasteners that are rated at 220,000psi, optional ARP L19 material 260.00psi available as an upgrade and the whole kit is supplied with ARP moly and full fitting instructions.

Additional machining processes

Rifle Drilled for maximum lubrication to increase wrist pin longevity
“Straight Cut” Pin End – Suitable for aftermarket pistons.
Dowel sleeves for perfect fit and accurate re-assembling
Lipped Cap Relief for improved big-end integrity at extreme application
Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

H-Beam Shape for extra rigidity
Two-Piece forging for great strength
Shot Peening for improved fatigue life
Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
Double ribbed caps for added support
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
CNC machining for superior tolerances, precise as much as 0.0002″
Center to center is maintained under .001″ tolerance
Finite Element Analysis (FEA) Computer generated stress analysis of con rods
Optimal balancing for weight matched sets of ± 1gram
