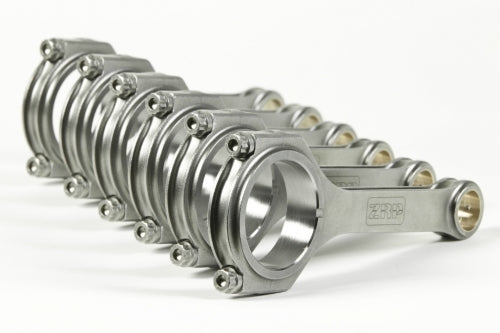

ZRP I-SCHAFT STAHL-PLEUEL BMW 2,5 - 3,2 6 ZYLINDER M20B25,M50B25,M52B25,M50B28,M52B28,M54B30,M52B32 CLASSIC SERIES 135.00MM X 22.00MM

ZRP Geschmiedete Stahl-Pleuel mit I-Schaft inkl. ARP Schrauben

M20B25 / M50B25 / M52B25 / M50B28 / M52B28 / M54B30 / M52B32 Classic Series

Shape

I-Beam

Length

135.00mm

Pin Diam.

22.00mm

Housing Bore

48.00mm

B.E Width

21.90mm

Weight Gr.

499

Set of

6

Bolt Size

3/8"

Fastener Grade

ARP2000

Con-Rod Series

Standard

Bolts Upgrade

Optional ARP L19 cap fasteners available as an upgrade

The I-Beam Connecting rods for BMW M50/M52 engine series are built from the finest raw materials 4340 high tensile steel with a specially optimized shape for high performance and extreme durability.

The bushings are made from AMPCO 18 material, for excellent resistance to wear and fatigue and have radial groove acting as an oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. The tight tolerances in the production process, ensure a perfect fitment while optimizing the oil clearances. Bend and twist is tightly controlled.

Each rod includes ARP 2000 cap fasteners that are rated at 220,000psi, optional ARP L19 material 260.00psi available as an upgrade and the whole kit is supplied with ARP moly and full fitting instructions.

Application: M20B25 / M50B25 / M52B25 / M50B28 / M52B28 / M54B30 / M52B32 / M52B32

Additional machining processes

Dowel sleeves for perfect fit and accurate re-assembling
Lipped Cap Relief for improved big-end integrity at extreme application
Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

I-Beam Shape for extra rigidity
Two-Piece forging for great strength
Shot Peening for improved fatigue life
Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
Double ribbed caps for added support
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
CNC machining for superior tolerances, precise as much as 0.0002″
Center to center is maintained under .001″ tolerance
Finite Element Analysis (FEA) Computer generated stress analysis of con rods
Optimal balancing for weight matched sets of ± 1gram
