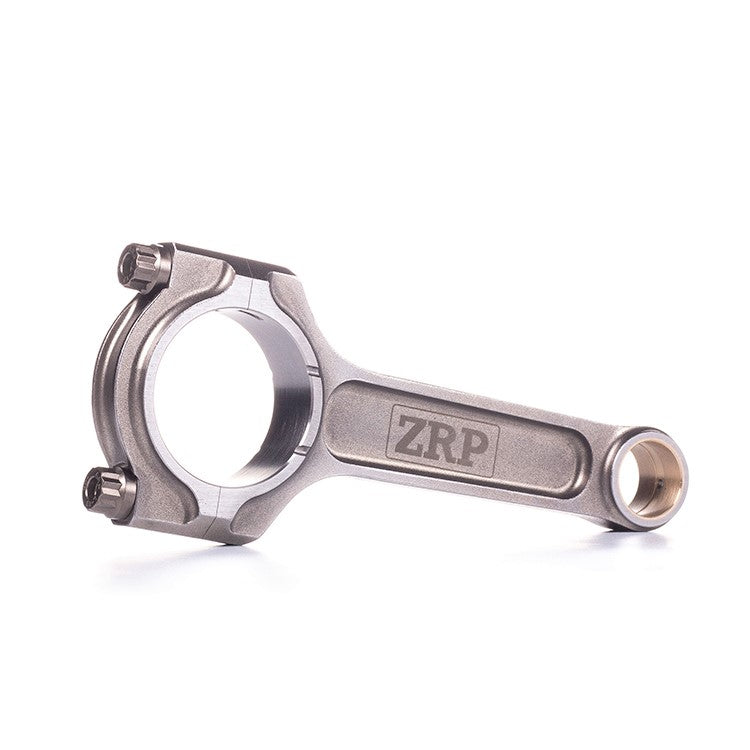

ZRP I-SCHAFT PLEUEL SUZUKI HAYABUSA “99-07” 119.50MM X 20.90MM ARP 2000

ZRP Geschmiedete I-Shaft Stahl-Pleuel inkl. ARP Schrauben
Suzuki Hayabusa “99-07” Heavy Duty Series

Gen.1 1,3l Hayabusa 99-07 Model-Turbo use

Bolt Size : 3/8"

Shape : I-Beam

Length (CC) : 119,50

Pin Size : 20.00

Big Bore : 41.00

B.E Width : 20.90

Weight Gr. : 355Set of : 4

Fastener Grade : ARP2000

Series : Heavy Duty

The I-Beam “Heavy Duty” series Connecting rods for Suzuki 1.3L
Hayabusa Gen.1 aimed for the High Hp/Boost applications. Built from the
finest raw materials 4340 high tensile steel with a specially optimized
shape for high performance and extreme durability.The bushings are made
from AMPCO 18 material, for excellent resistance to wear and fatigue and
have radial groove acting as an oil reservoir. They are shot peened to
relieve stress from the material and multi-stage heat treated to
increase rigidity. The tight tolerances in the production process,
ensure a perfect fitment while optimizing the oil clearances. Bend and
twist is tightly controlled.Each rod includes 3/8 ARP 2000 cap fasteners
that are rated at 220,000psi, optional ARP L19 material 260.00psi
available as an upgrade and the whole kit is supplied with ARP moly and
full fitting instructions.

Additional machining processes

Dowel sleeves for perfect fit and accurate re-assembling
Lipped Cap Relief for improved big-end integrity at extreme application
Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

Two-Piece forging for great strength
I-Beam Shape for extra rigidity
Shot Peening for improved fatigue life
Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
Double ribbed caps for added support
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
CNC machining for superior tolerances, precise as much as 0.0002″
Center to center is maintained under .001″ tolerance
Finite Element Analysis (FEA) Computer generated stress analysis of con rods
Optimal balancing for weight matched sets of ± 1gram

Additional Information

Emgine Nr.
GEN 1Application1,3L HayabusaNotes99"-07" Model-Turbo useBolt Size3/8"ShapeI-BeamLength (CC)119.50Pin Size20.90Big Bore41.00B.E Width20.00Weight Gr.355Set of4Fastener GradeARP 2000SeriesHeavy DutyWeight355
