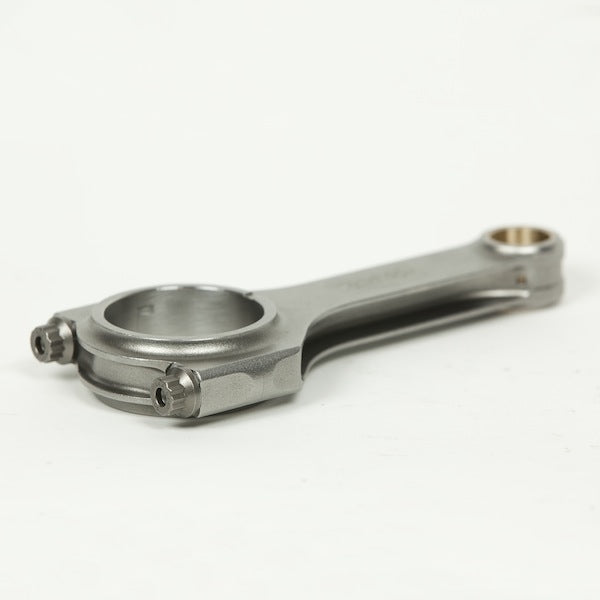

ZRP H-SCHAFT STAHL-PLEUEL FÜR AUDI / VW 1.4L TSI/TFSI ( EA111) (NON-RIFLE DRILLED) 144.00MMX19MM

ZRP Geschmiedete Stahl-Pleuel mit

H-Schaft und ARP L19-Schrauben

Audi / VW 1.4L TSI (Non-Rifle Drilled)

Engine Nr

CAVD, CAXA, CAVA, BLG, CAX, CAV, CVA
Application

1.4L TFSI (2012-Pre)Notes Non-Rifle Drilled Rods

Bolt Size

5/16"

Shape

H-Beam

Length (CC)

144.00

Pin Size

19.00

Big Bore

50.60

B.E Width

23.00

Weight Gr.

467
Set of

4

Fastener Grade

ARP2000

Audi / VW 1.4L TSI & TFSI Connecting rods are H-Beam shaped and
manufactured from 4340 high tensile steel. These rods have “Rifle
Drilled” for extra wrist pin lubrication to prolong longevity. The
bushings are made from AMPCO 18 material, for excellent resistance to
wear and fatigue and have radial groove acting as an oil reservoir. They
also have “Ribbed pin end” that minimizes pin end distortion under
heavy inertial loads while saving excess weight. They are shot peened to
relieve stress from the material and multi-stage heat treated to
increase rigidity. The tight tolerances in the production process,
ensure a perfect fitment while optimizing the oil clearances. Bend and
twist is tightly controlled. They are designed for high performance and
extreme durability.Each rod includes ARP 2000 cap fasteners that are
rated at 220,000 psi , optional ARP 625 material available as an upgrade
and the whole kit is supplied with ARP moly and full fitting
instructions.

Additional machining processes

Dowel sleeves for perfect fit and accurate re-assembling
Rifle Drilled for maximum lubrication to increase wrist pin longevity
Lipped Cap Relief for improved big-end integrity at extreme application
Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

Two-Piece forging for great strength
Shot Peening for improved fatigue life
Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
Double ribbed caps for added support
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
CNC machining for superior tolerances, precise as much as 0.0002″
Center to center is maintained under .001″ tolerance
Finite Element Analysis (FEA) Computer generated stress analysis of con rods
Optimal balancing for weight matched sets of ± 1gram
