ZRP GESCHMIEDETE STAHL-PLEUEL MIT I-SCHAFT VAG 1,9L TDI

ZRP Geschmiedete Stahl-Pleuel mit I-Schaft und ARP-Schrauben

VAG 1,9l TDI Diesel

Shape

I-Beam

Length

144.00mm

Pin Diam.

26.00mm

Housing Bore

53.70mm

B.E Width

24.90mm

Weight Gr.

523

Set of

4

Bolt Size

5/16"

Fastener Grade

ARP2000

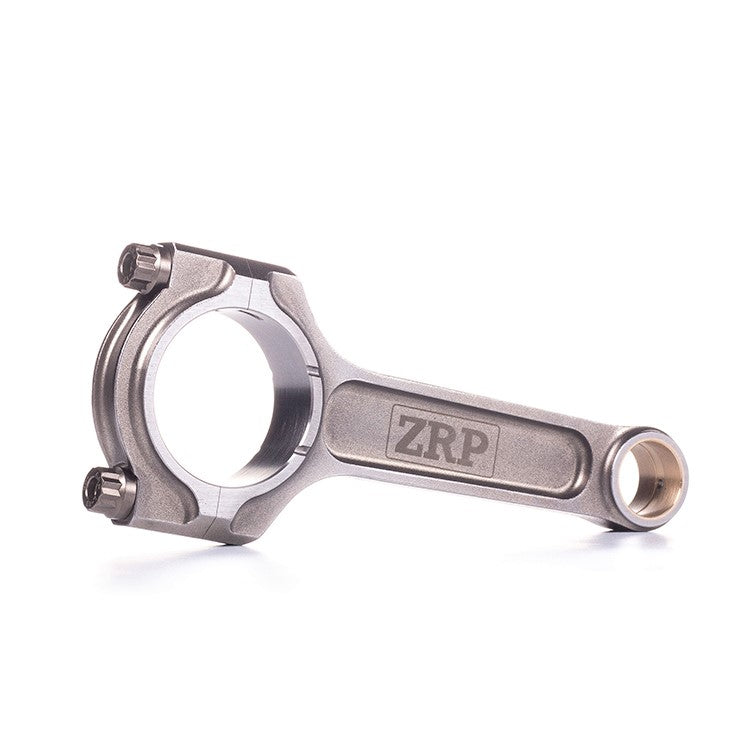

VW / Audi 1.9L DTi Diesel 144×26 Connecting Rods

ZRP standard series I-Beam Shaped Connecting Rods are manufactured from 4340 high tensile steel and they are designed for high performance and extreme durability.

They have a tapered pin end, so they are compatible with OEM pistons also.

The bushings made from AMPCO 18 material for excellent resistance to wear and fatigue and have radial groove for oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. Bend and twist is tightly controlled while tight tolerances in the production process, ensure a perfect fitment while optimizing the oil clearances.

Each rod includes ARP 2000 cap fasteners that are rated at 220,000 psi , optional ARP L19 material available as an upgrade and the whole kit is supplied with ARP moly and full fitting instructions

TECHNICAL FEATURES

Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
Shot Peening for improved fatigue life.
CNC machining for superior tolerances as tight as 0.0002”
Center to center is a maintained to .001″ tolerance
Finite Element Analysis FEA Computer generated stress analysis of con rods.
Bend and twist is tightly controlled.
Optimal balancing for weight matched sets ± 1gram.
