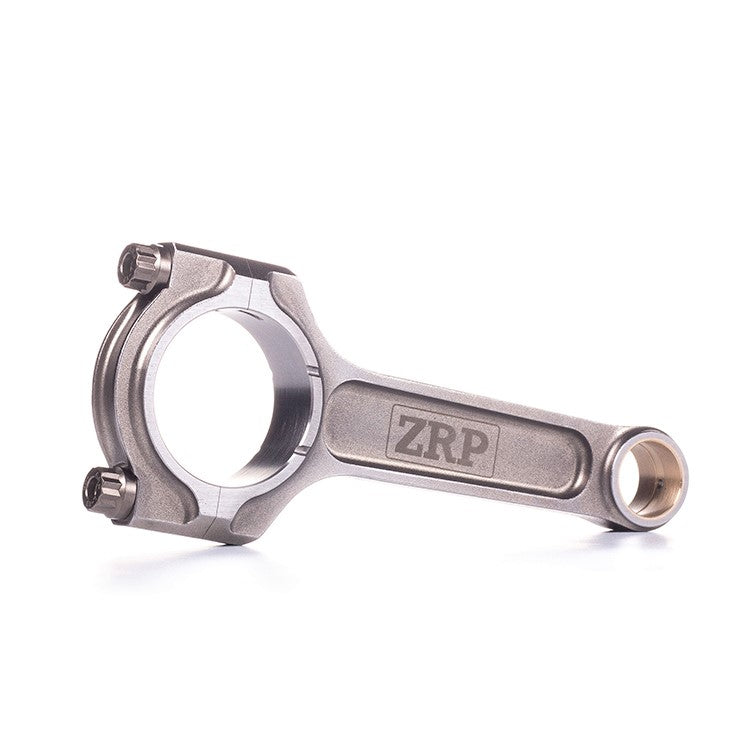

ZRP GESCHMIEDETE STAHL-PLEUEL MIT I-SCHAFT UND ARP-SCHRAUBEN MITSUBISHI EVO 4G63

ZRP Forged Con-Rods I-Beam set with ARPL19

Mitsubishi EVO 4G63

Mitsubishi 2.0L 16v 4G63 I-Beam Connecting Rods

Between Centers – 150.00mm
Big end – 48.00mm
Small end – 22.00mm
B.E Width – 26.40mm
Weight in Grams – 513 (w/o Bolts)
Bolt size – 3/8″

Additional machining processes:

Aluminum – Silicon/ Bronze bushing with radial groove Dowel sleeves for perfect fit and accurate re-assembling
Lipped Cap Relief for improved big-end integrity at extreme application
Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods:

Shot Peening for improved fatigue life
Magnaflux Inspection guarantees the consistency of the forged material andmeets our high quality standard
Multi Stage Heat Treat for maximum strength, dimensional stability, and fatigue life.
CNC machining for superior tolerances as tight as 0.0003″
Optimal balancing for weight matched sets (+/- 1g)
Center to center is held to 001″ tolerance
Finite Element Analysis FEA Computer generated stress analysis of con rods
ARP L19 Rod Bolts rated to 260,000psi
I-Beam Design – High tensile steel 4340
Combination tested to over 700HP+
