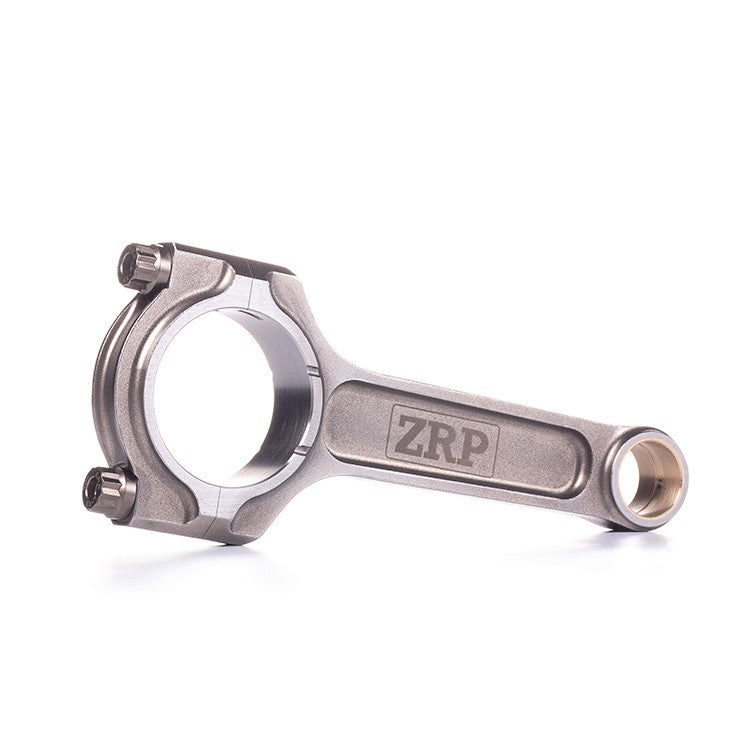

ZRP GESCHMIEDETE I-SCHAFT PLEUEL FÜR VW/AUDI 1,8T 20 V /2,0 TSI EA 113 144.00MM X 20.00MM

ZRP Geschmiedete I-Schaft Stahl-Pleuel mit ARP Schrauben für

Audi / VW

2,0l TFSI / TSI

Motor : AXX, BHZ, BGB, BWE, BUL, CDNB, BYK, BPJ, BWA, BWT

Technische Daten:

Länge von Mitte zu Mitte
144 mm

Durchmesser Hubzapfen
50.60 mm

Durchmesser Pleuelauge
20 mm

ARP Schrauben
Typ
B.W Width
Gewicht

Satz

3/8
I-Beam
24.89
515
ARP2000
4

The I-Beam “Heavy Duty” series Connecting rods for Audi / VW 1.8L
Turbo 20v aimed for the High Hp/Boost applications. Built from the
finest raw materials 4340 high tensile steel with a specially optimized
shape for high performance and extreme durability.They feature “straight
cut” pin end for increased durability, so they can only be used in conjunction with aftermarket pistons. The bushings are made from AMPCO 18
material, for excellent resistance to wear and fatigue and have radial
groove acting as an oil reservoir. They are shot peened to relieve
stress from the material and multi-stage heat treated to increase
rigidity. The tight tolerances in the production process, ensure a
perfect fitment while optimizing the oil clearances. Bend and twist is
tightly controlled.Each rod includes ARP 2000 cap fasteners that are
rated at 220,000psi, optional ARP L19 material 260.00psi available as an
upgrade and the whole kit is supplied with ARP moly and full fitting
instructions.

Additional machining processes

“Straight Cut” Pin End – Suitable for aftermarket pistons
Dowel sleeves for perfect fit and accurate re-assembling
Lipped Cap Relief for improved big-end integrity at extreme application
Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

I-Beam Shape for extra rigidity
Two-Piece forging for great strength
Shot Peening for improved fatigue life
Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
Double ribbed caps for added support
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
CNC machining for superior tolerances, precise as much as 0.0002″
Center to center is maintained under .001″ tolerance
Finite Element Analysis (FEA) Computer generated stress analysis of con rods
Optimal balancing for weight matched sets of ± 1gram
