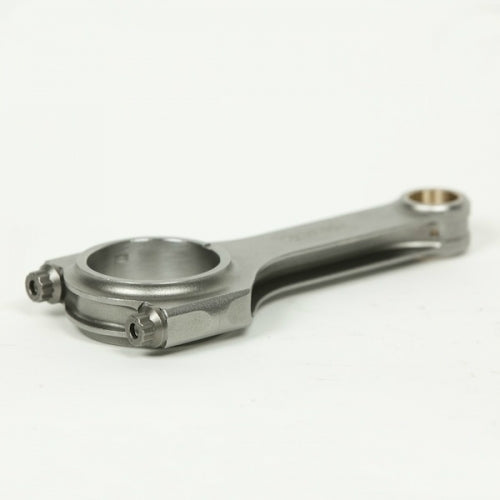

H-SCHAFT STAHL-PLEUEL BMW M3 S14 B20 EURO 2.0L

ZRP Geschmiedete H-Schaft Stahl-Pleuel und ARP -Schrauben

BMW M3 S14 B20 Euro 2.0L

Shape

H-Beam

Length

150.00mm

Pin Diam.

22.00mm

Housing Bore

52.00mm

B.E Width

23.90mm

Weight Gr.

601

Set of

4

Bolt Size

3/8"

Fastener Grade

ARP2000

Con-Rod Series

Standard

Bolts Upgrade

Optional ARP L19 cap fasteners available as an upgrade

BMW 2.0L M10 2002 H-Beam Connecting Rods are manufactured from 4340 high tensile steel and are designed for high performance and extreme durability. The bushings are made from Aluminum – silicon/ bronze Aluminum – silicon/ bronze material and have radial groove acting as an oil reservoir. These rods have “Ribbed pin end” that minimizes pin end distortion under heavy inertial loads while saving excess weight. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. The tight tolerances in the production process, ensure a perfect fitment while optimizing the oil clearances. Bend and twist is tightly controlled.

Each rod includes ARP 2000 cap fasteners that are rated at 220,000psi, optional ARP L19 material 260.00psi available as an upgrade and the whole kit is supplied with ARP moly and full fitting instructions.

Additional machining processes

Dowel sleeves for perfect fit and accurate re-assembling
Lipped Cap Relief for improved big-end integrity at extreme application
Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

Two-Piece forging for great strength
Shot Peening for improved fatigue life
Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
Double ribbed caps for added support
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
